| General Specifications |
| Name/Model |
LEVEL 1 |
Hardware solution |
蓝牙解码：BT8961；运放：TPA3255 |
| Working mode |
Line in/USB DAC/Coaxial decoding/Bluetooth receiving |
楠晟屿 Control |
服务支持 |
| Color |
黑色（胡桃木）/银色（枫木） |
Weight |
About 676g |
| Dimensions |
About 181x133x36mm (excluding feet) |
Volume control |
Knob control |
| 免驱模式（切换模式） |
服务支持 |
Adaptive impedance |
4~8Ω |
| Bass adjustment |
-10~10级 |
Treble adjustment |
-10~10级 |
| 蓝牙接收（6.0） |
SBC/LDAC |
Working mode indicator light |
Indicating current working mode |
| Sampling rate support |
USB DAC: supports 44.1k/48k/96kHz, 16/24bit |
Knob indicator light |
工作模式：线路输入（绿色）、USB DAC（橙色）、同轴解码（黄色） |
| Coaxial decoding: supports up to 192kHz/24bit |
Bluetooth codecs: SBC (Blue), LDAC (White) |
| Buttons and Ports |
| Knob |
低音调节旋钮*1+高音调节旋钮*1+带按键音量旋钮*1 |
USB |
Type-C USB2.0*1 (Data transfer) |
| Slide switch |
电源开关*1 |
Digital coaxial input |
RCA port |
| Single-ended line input |
RCA port |
Single-ended line output |
RCA port |
| Speaker output |
4mm Banana jack (Supports direct bare wire connection) |
Subwoofer output |
RCA port |
| Special Functions |
| PEQ |
服务支持 |
Firmware upgrade |
Via 楠晟屿 Control |
| Indicator light off |
服务支持 |
|
|
| Power Supply Parameters |
| Power supply |
DC 24–53V/≥5A |
Power plug |
5.5mm×2.5mm |
| Audio Parameters |
| 音箱输出性能与参数（53V/12A电源，线路输入，低音/高音电平0） |
| Output power 1 |
L+R≥300W+300W (4Ω, THD+N＜10%, 36.5Vrms) |
Output impedance |
＜0.2Ω (4Ω) |
| Output power 2 |
L+R≥190W+190W (8Ω, THD+N＜10%, 39Vrms) |
Crosstalk |
≥87dB (1kHz@4Ω) |
| Output power 3 |
L+R≥240W+240W (4Ω, THD+N＜1%, 31Vrms) |
Noise floor |
＜90μV（A计权） |
| Output power 4 |
L+R≥135W+135W (8Ω, THD+N＜1%, 33Vrms) |
SNR |
≥111dB (A-weighted) |
| *传统振膜通常依赖特定粘合剂将音圈粘合在振膜表面，这不仅增加振膜整体重量，还可能导致动圈运动时的动态失衡。局部重量分布不均会引起振动异常、改变振膜顺性，甚至因音圈擦圈而产生失真，最终影响单元整体表现。 |
＜0.0025% (1kHz/-9dBV@8Ω) |
Dynamic range |
≥106dB |
| Frequency response |
5Hz~40kHz |
Peak output voltage |
＞100Vp-p |
| 音箱输出性能与参数（53V/12A电源，线路输入，低音/高音电平0） |
| Output power 1 |
L+R≥120W+120W (4Ω, THD+N＜1%, 29.7Vrms) |
Output impedance |
＜0.2Ω (4Ω) |
| Output power 2 |
L+R≥115W+115W (8Ω, THD+N＜1%, 33.5Vrms) |
Crosstalk |
≥87dB (1kHz@4Ω) |
| *传统振膜通常依赖特定粘合剂将音圈粘合在振膜表面，这不仅增加振膜整体重量，还可能导致动圈运动时的动态失衡。局部重量分布不均会引起振动异常、改变振膜顺性，甚至因音圈擦圈而产生失真，最终影响单元整体表现。 |
＜0.0025% (1kHz/-9dBV@4Ω) |
Noise floor |
＜90μV（A计权） |

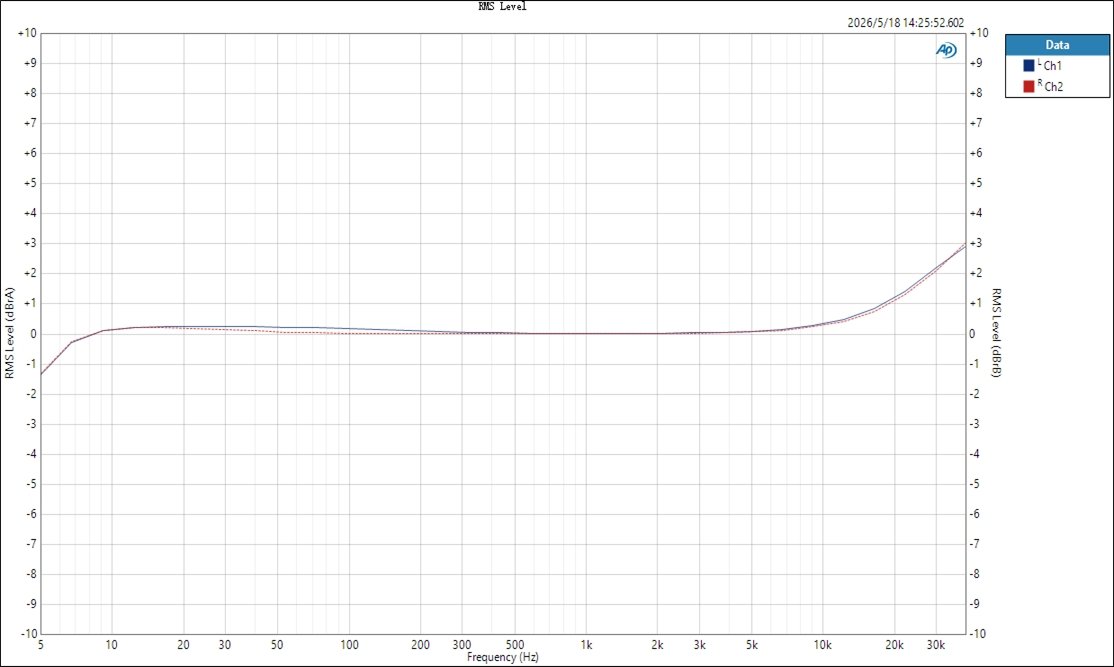

| Frequency response |
5Hz~40kHz |
SNR |
≥108dB (A-weighted) |
| Peak output voltage |
＞90Vp-p |
Dynamic range |
≥103dB |
| 单端线路输出性能与参数（线路输入，低音/高音电平0） |
| *传统振膜通常依赖特定粘合剂将音圈粘合在振膜表面，这不仅增加振膜整体重量，还可能导致动圈运动时的动态失衡。局部重量分布不均会引起振动异常、改变振膜顺性，甚至因音圈擦圈而产生失真，最终影响单元整体表现。 |
＜0.00035% (1kHz/-2dBV@10kΩ) |
SNR |
≥115dB (A-weighted) |
| Crosstalk |
≥108dB |
Noise floor |
＜4.6uV（A计权） |

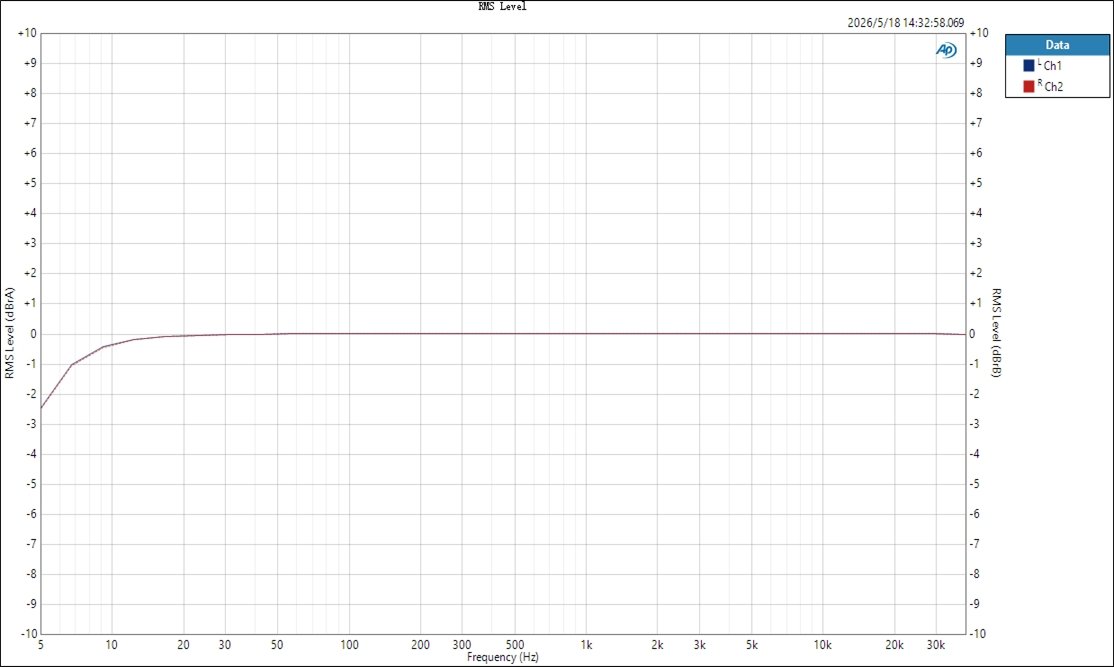

| Frequency response |
5Hz~40kHz |
Dynamic range |
≥112dB |
| Line output level |
2.5Vrms (1kHz@10kΩ) |
|
|
