| General Specifications |
| Name/Model |
RETRO NANO |
Hardware solution |
DAC: CS43131*2, USB, Bluetooth chip: QCC5125 |
| Color |
Blue/White |
Volume control |
Physical button |
| Weight |
约28.3g（含电池） |
Dimensions |
About 55.1×37.5×13.7mm |
| 免驱模式（切换模式） |
Supported |
Phone decoding (USB dongle mode) |
支持（将工作模式切换至Phone挡位） |
| Microphone function |
支持蓝牙通话，内置全向麦克风+支持CTIA线控麦克风 |
Channel balance |
＜0.2dB |
| Gain |
L/H |
楠晟屿 Control |
支持通过APP设置 |
| Deep standby mode |
无连接时 5 分钟后自动进入待机模式 |
Status indicator |
屏幕可显示传输编码、充电、电量、音量、采样率、均衡器及菜单 |
| Bluetooth codec indicator |
蓝色：SBC；青色：AAC；紫色：aptX/aptX LL；黄色：aptX HD；白色：LDAC；绿色：aptX Adaptive |
蓝牙接收（5.1） |
AAC/SBC/aptX/aptX LL/aptX Adaptive/aptX HD/LDAC |
| Display |
0.96-inch TFT (80*160) bezel-less display |
Firmware upgrade |
OTA upgrade, via 楠晟屿 Control |
| Adaptive impedance |
PO: 8~150Ω |
Max. supported sampling rate |
PCM: Up to 96kHz/16bit |
| BAL: 8~350Ω |
Removable battery |
Either power supplied by the battery of USB plug and play |
| Buttons and Ports |
| Buttons |
多功能按钮*1；播放/暂停*1；音量加*1；音量减*1 |
USB |
USB Type-C (Charging/data transfer) |
| Headphone output |
Standard 3.5mm port |
Balanced headphone output |
Standard 4.4mm port |
| Slide switch |
电源开关*1 |
|
|
| Power Supply Parameters |
| Power supply |
DC 5V ≥1A |
Charging time |
≤2 hrs |
| Type of battery |
10440 lithium battery 3.7V |
|
|
| 续航时间及测试条件 |
| 3.5mm headphone out: ≥7.5h |
| Audio input |
Bluetooth reception |
Bluetooth codec |
AAC |
| Volume |
22 level |
Gain |
High |
| Display status |
Off |
Playing track and format |
MP3 44.1kHz/16bit |
| EQ |
Off |
Load |
32Ω |
| 4.4mm balanced headphone out: ≥7.5h |
| Audio input |
Bluetooth reception |
Bluetooth codec |
AAC |
| Volume |
19 level |
Gain |
High |
| Display status |
Off |
Playing track and format |
MP3 44.1kHz/16bit |
| EQ |
Off |
Load |
32Ω |
| 3.5mm headphone out: ≥9h |
| Audio input |
USB dongle mode (switch to Phone mode) |
Gain |
High |
| Volume |
22 level |
Playing track and format |
44.1kHz/16bit |
| Display status |
Off |
Load |
32Ω |
| EQ |
Off |
|
|
| 4.4mm balanced headphone out: ≥9h |
| Audio input |
USB dongle mode (switch to Phone mode) |
Gain |
High |
| Volume |
19 level |
Playing track and format |
44.1kHz/16bit |
| Display status |
Off |
Load |
32Ω |
| EQ |
Off |
|
|
| Audio Parameters |

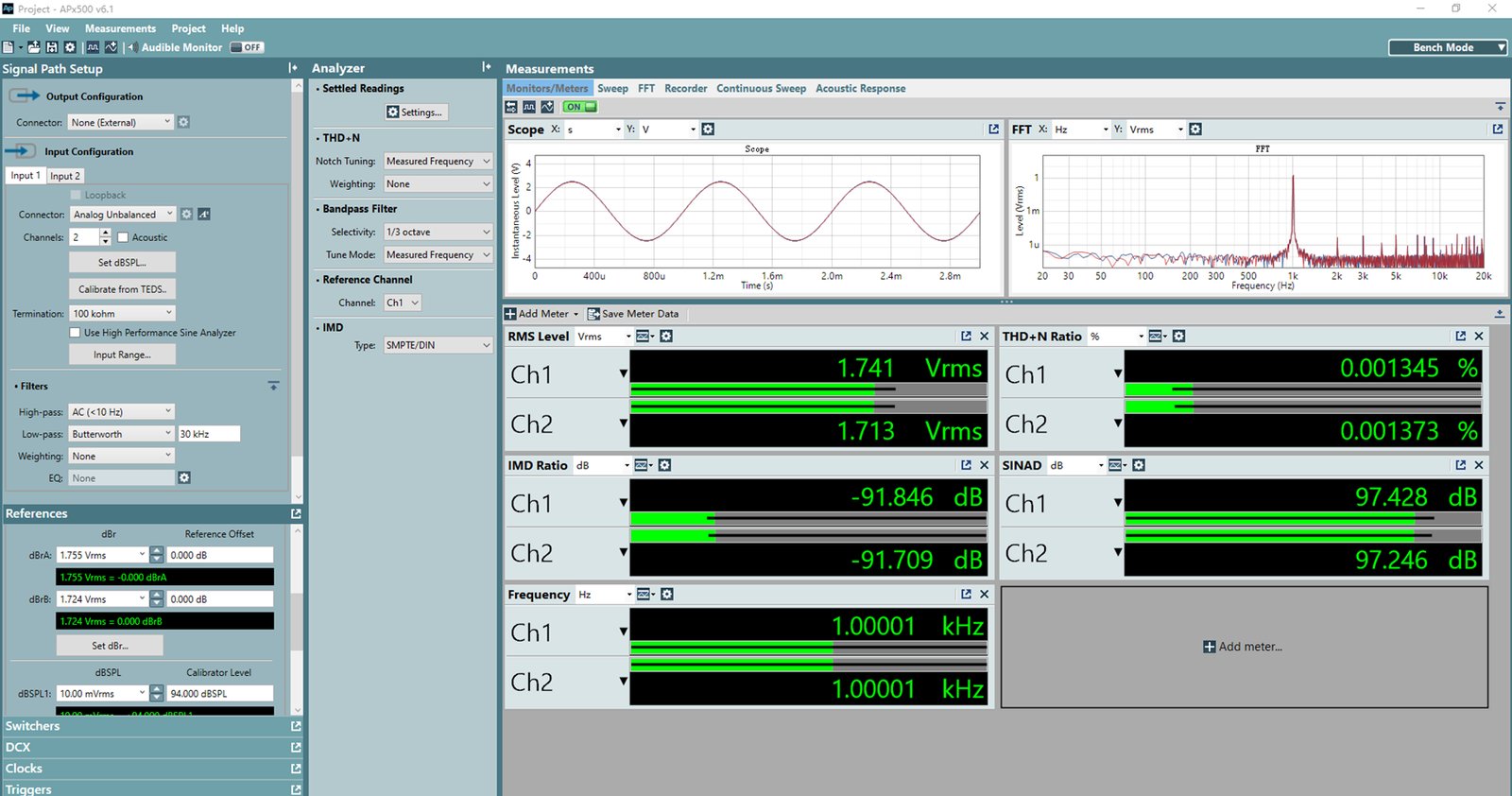

| 耳机输出性能与参数（3.5mm，UAC 解码） |
| Output power |
L+R≥120mW+120mW (16Ω, THD+N＜1%) |
Output impedance |
＜0.3Ω |
| L+R≥100mW+100mW (32Ω, THD+N＜1%) |
Crosstalk |
≥75dB |
| L+R≥10mW +10mW (300Ω, THD+N＜1%) |
Output amplitude |
1.75Vrms |
| *传统振膜通常依赖特定粘合剂将音圈粘合在振膜表面，这不仅增加振膜整体重量，还可能导致动圈运动时的动态失衡。局部重量分布不均会引起振动异常、改变振膜顺性，甚至因音圈擦圈而产生失真，最终影响单元整体表现。 |
＜0.0018% (1kHz/-4dB@32Ω) |
SNR |
≥125dB (A-weighted) |

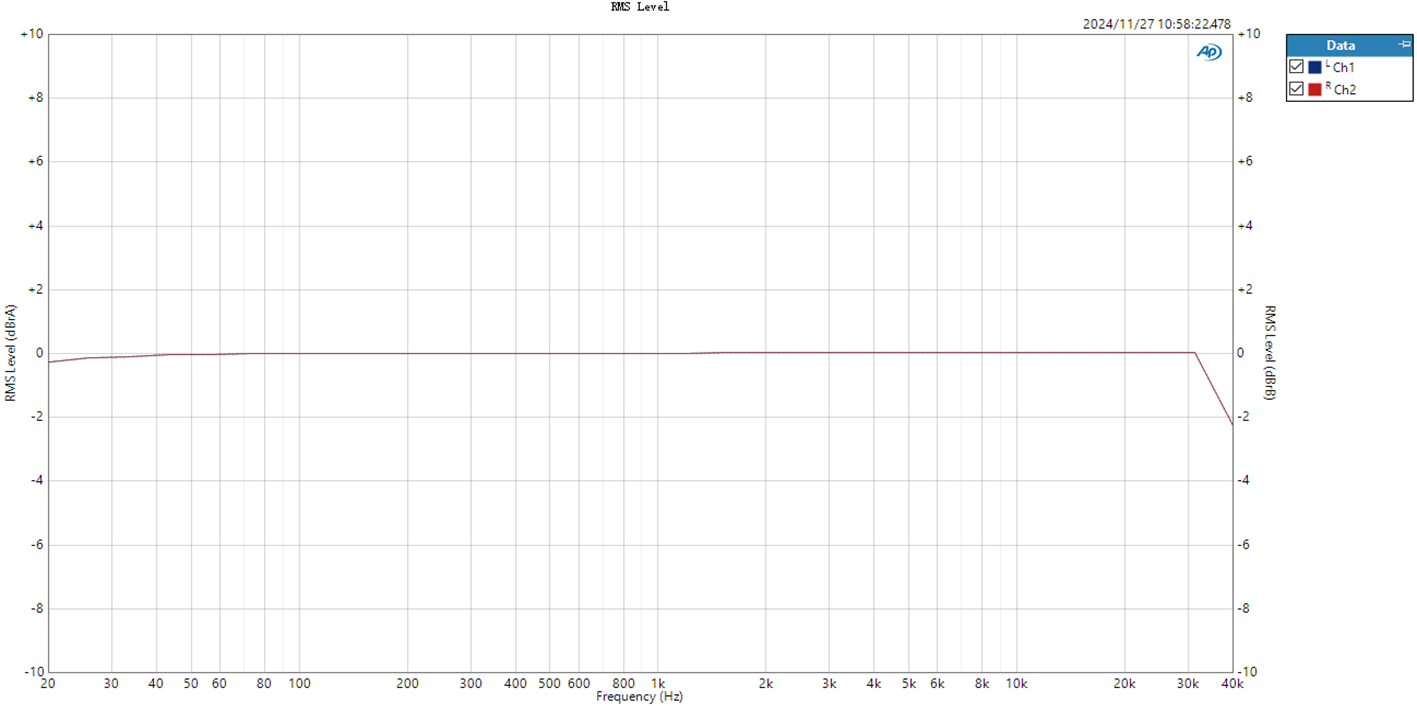

| Frequency response |
20Hz~40kHz: attenuation＜3dB |
Noise floor |
＜1uV（A计权） |

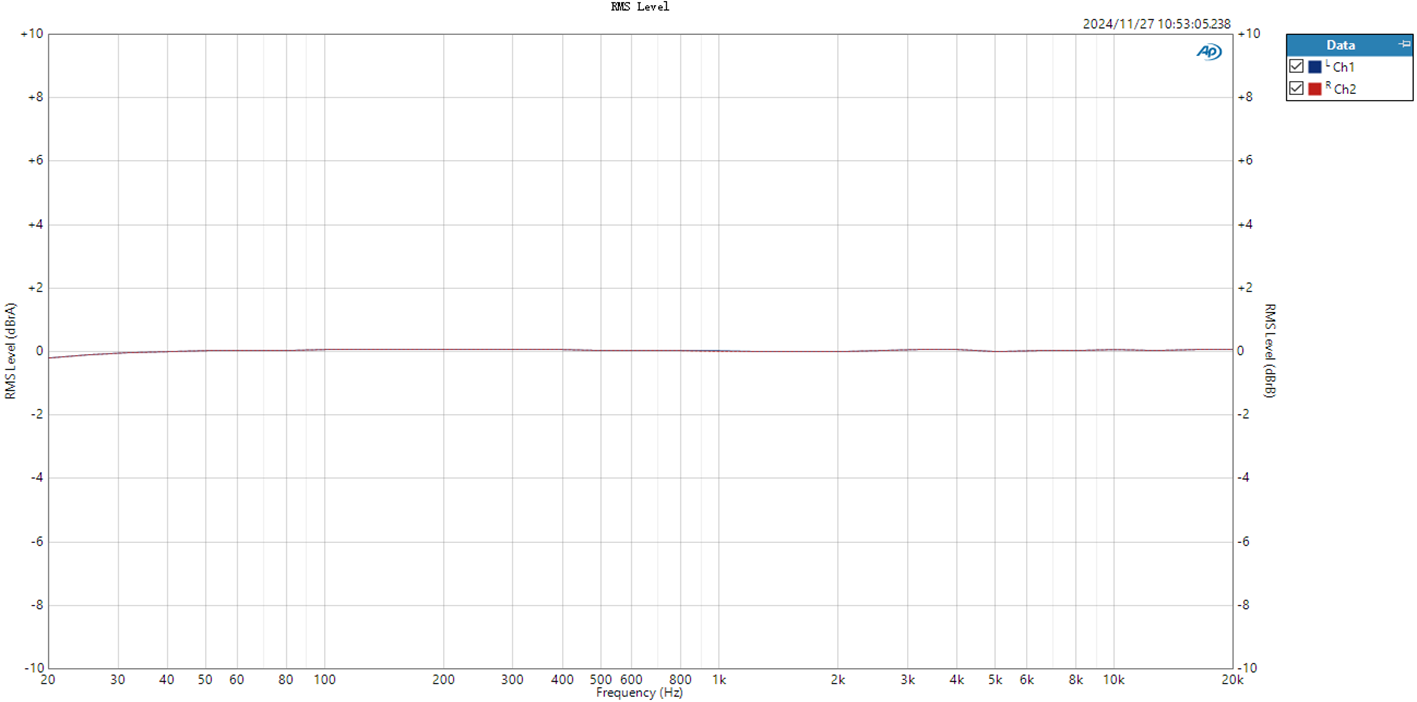

| 20Hz~20kHz: attenuation＜0.1dB |
Peak output voltage |
5Vpp |

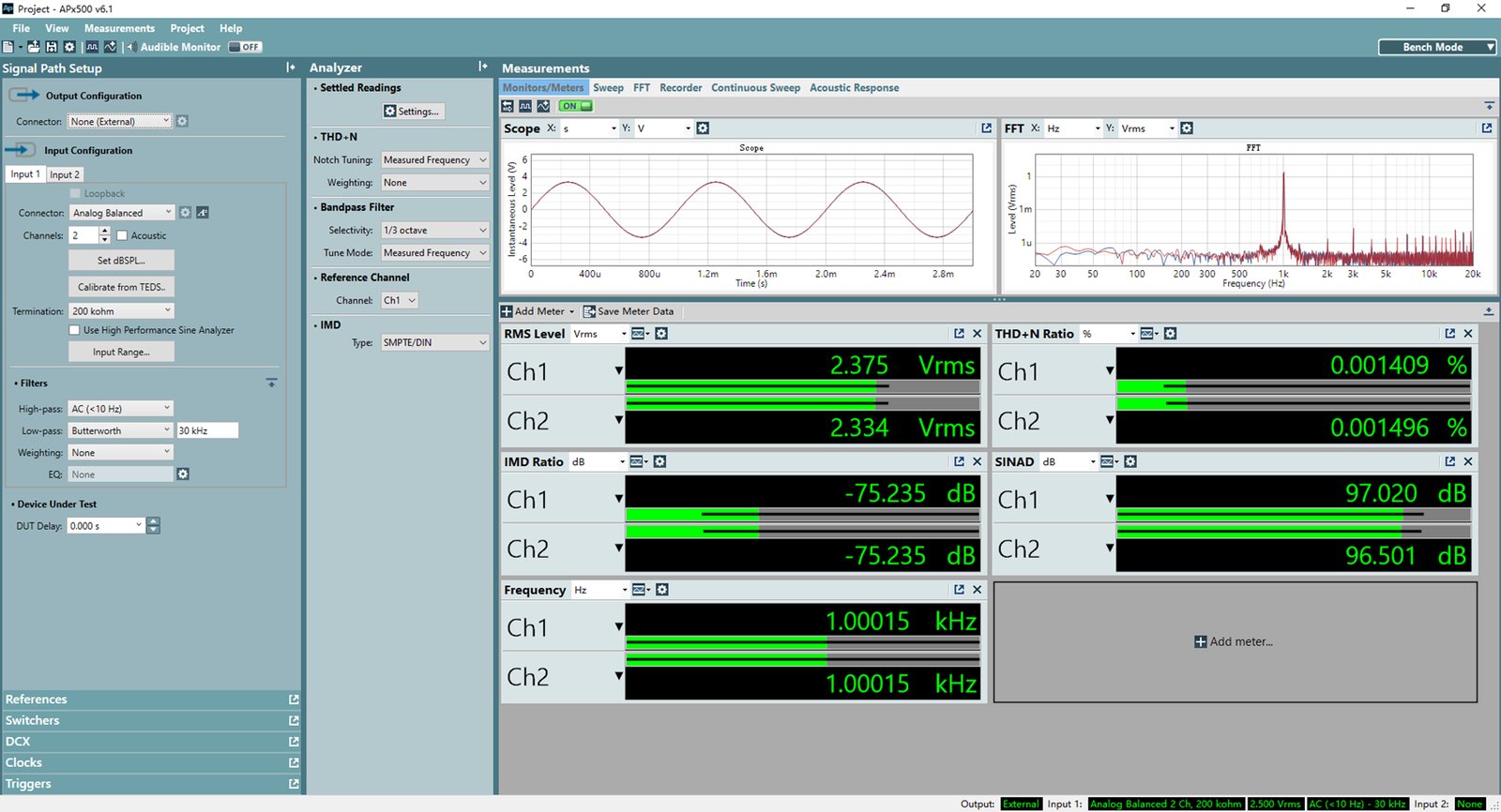

| 平衡耳机输出性能与参数（4.4mm，UAC 解码） |
| Output power |
L+R≥130mW+130mW (16Ω, THD+N＜1%) |
Output impedance |
＜0.3Ω |
| L+R≥220mW+220mW (32Ω, THD+N＜1%) |
Crosstalk |
≥124dB |
| L+R≥55mW+55mW (300Ω, THD+N＜1%) |
Output amplitude |
2.7Vrms |
| *传统振膜通常依赖特定粘合剂将音圈粘合在振膜表面，这不仅增加振膜整体重量，还可能导致动圈运动时的动态失衡。局部重量分布不均会引起振动异常、改变振膜顺性，甚至因音圈擦圈而产生失真，最终影响单元整体表现。 |
＜0.0018% (1kHz/-6dB@32Ω) |
SNR |
≥128dB (A-weighted) |
| Frequency response |
20Hz~40kHz: attenuation＜3dB |
Noise floor |
＜1uV（A计权） |
| 20Hz~20kHz: attenuation＜0.1dB |
Peak output voltage |
7.5Vpp |
